Product Features
Available On Backorder

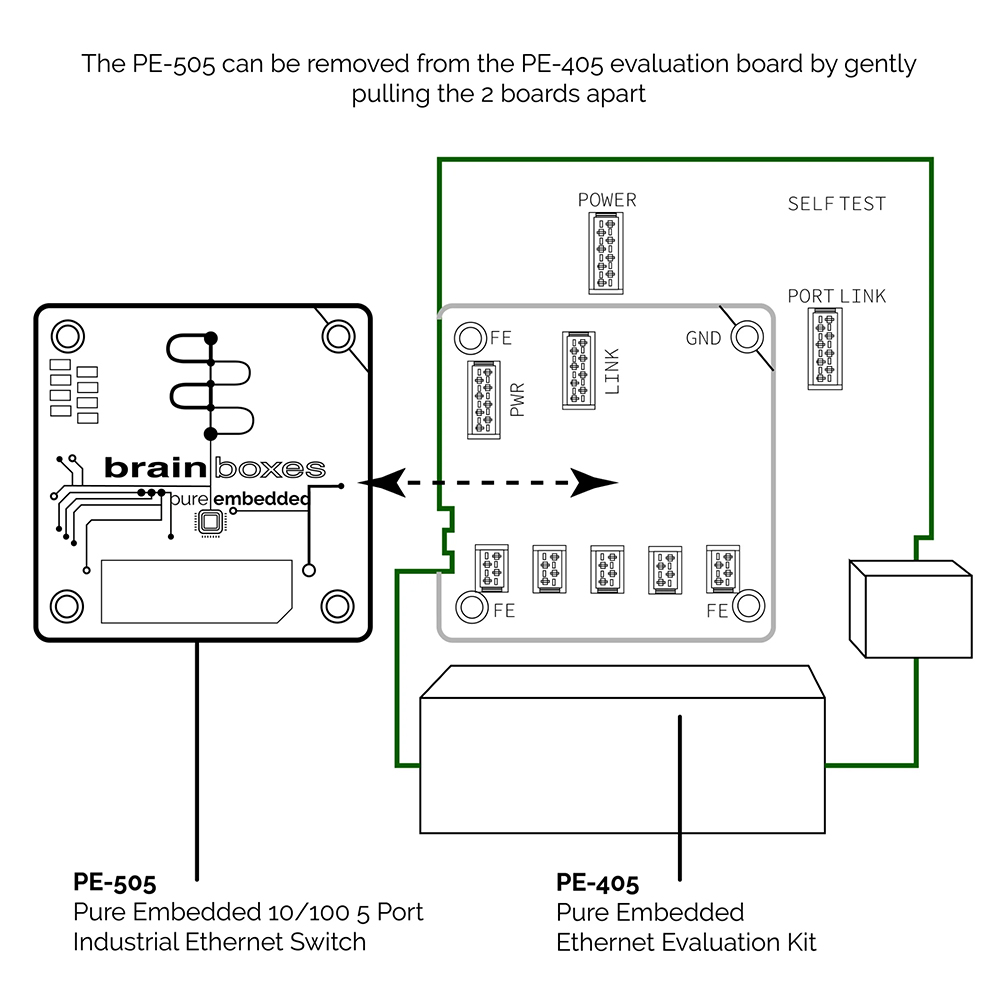

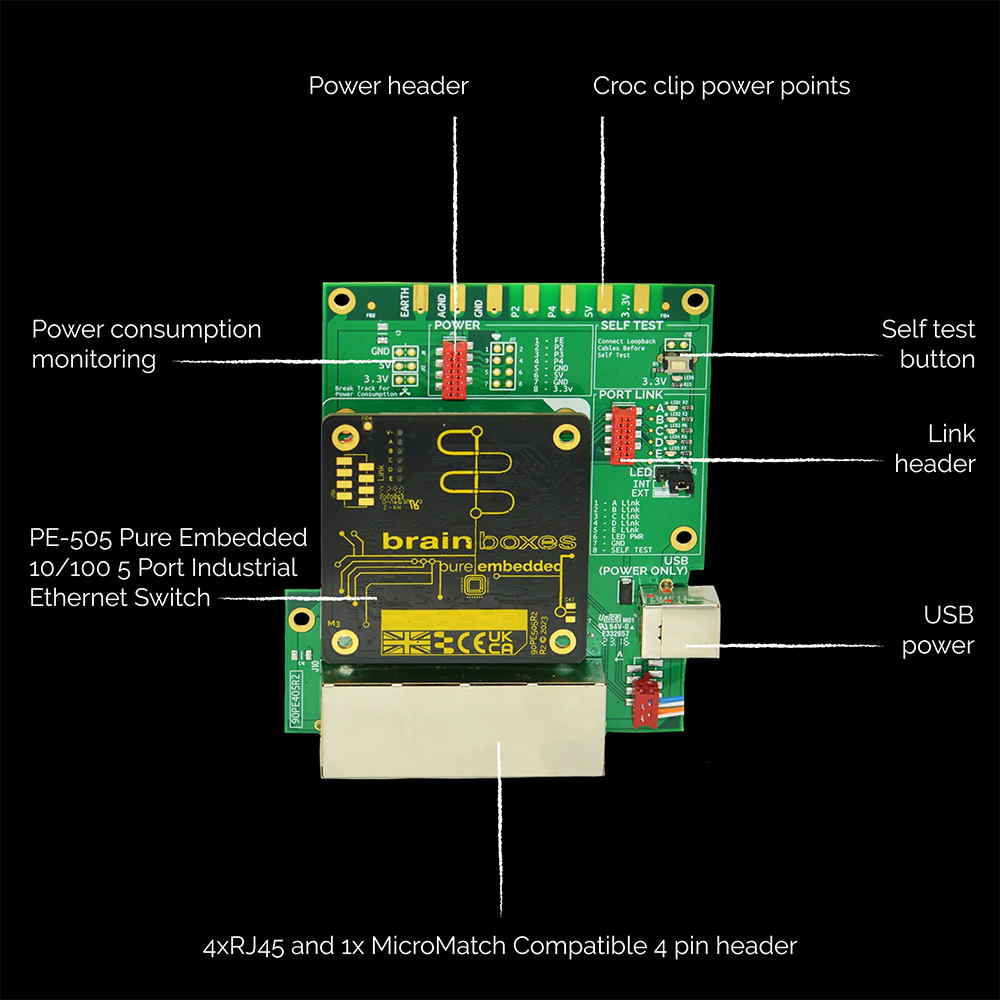

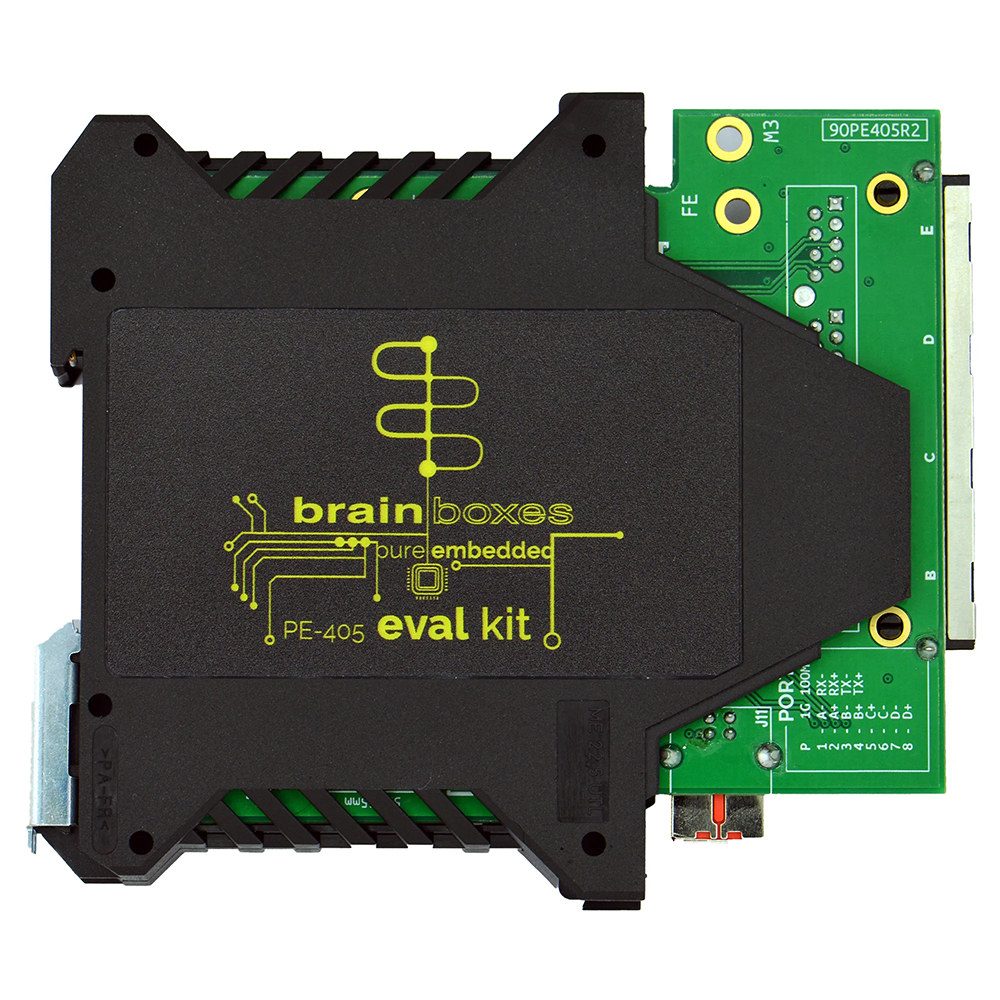

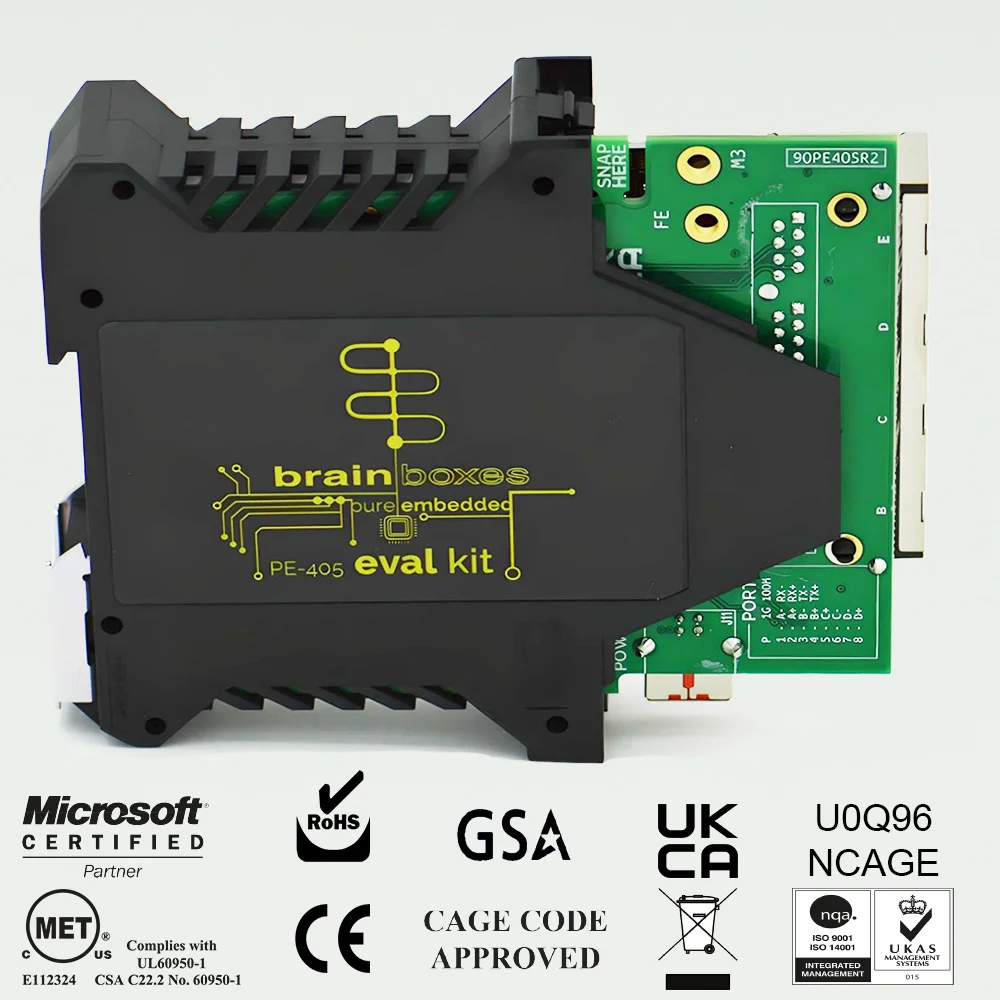

Pure Embedded Industrial 10/100 Ethernet Switch Evaluation Kit – allows easy access to all features of the PE-505* and allows for further testing and debugging within a prototype system before any commitment to custom fixtures or designs is made.PE-405 Embedded Industrial 10/100 Ethernet Evaluation Kit includes: Pure Embedded Industrial 5 Port 10/100 Ethernet Switch (PE-505)* Evaluation board (breaks out all ports and functionality to RJ45 or usable headers) 5x IDC Header to RJ45 Cable IDC Headers USB Power Cable*PE-505 Pure Embedded Industrial 5 Port 10/100 Ethernet Switch 3D CAD files and PCB footprints Mega compact form – smaller than a standard business card (55x55x10mm) Seamless integration with design software – logical placements and fixed distances Board-to-board and board-to-cable connection Stability of design guaranteed for min. 10 years LEDs visible in all orientations – option to route through fibre
Call, e-mail or connect via LiveChat and you will always be helped by an experienced member of the team.
8:30am–6pm working day
Speak to your dedicated account manager
Have a question about this product or need support on whats right for your requirements...
This REACH declaration from VIDEK LIMITED confirms that the above product/s and its packaging complies with the Reach Regulation detailed at date above. Further, that each of the parts identified in this declaration does not contain any of the Substances of Very High Concern (SVHC) on the applicable REACH Candidate List in a concentration above the 0.1% by weight allowable limit or there is an applicable exemption from the REACH Directive for the reasons set forth in this declaration.
We certify, by submitting this Document on behalf of Videk, that the data and information provided in this Declaration is to our best knowledge true and accurate. This determination has been made using appropriate systems which also includes data provided to Videk by their suppliers or manufacturers. Videk maintains records and documentation of the verification or audit methods. This information is provided upon request for recipient reference only and must not be published without prior written authority.
This RoHS declaration from VIDEK LIMITED confirms that the above product/s and its packaging complies with the RoHS Directive requirements at date above. With effect that each of the parts identified in this declaration does not contain any of the hazardous and restricted substances detailed in the RoHS 3 Directive (EU) 2015/863.
